2000
10,000 cph

510 x 310mm max

100 x 125mm min

80mm max thickness
Automatic Make Ready model

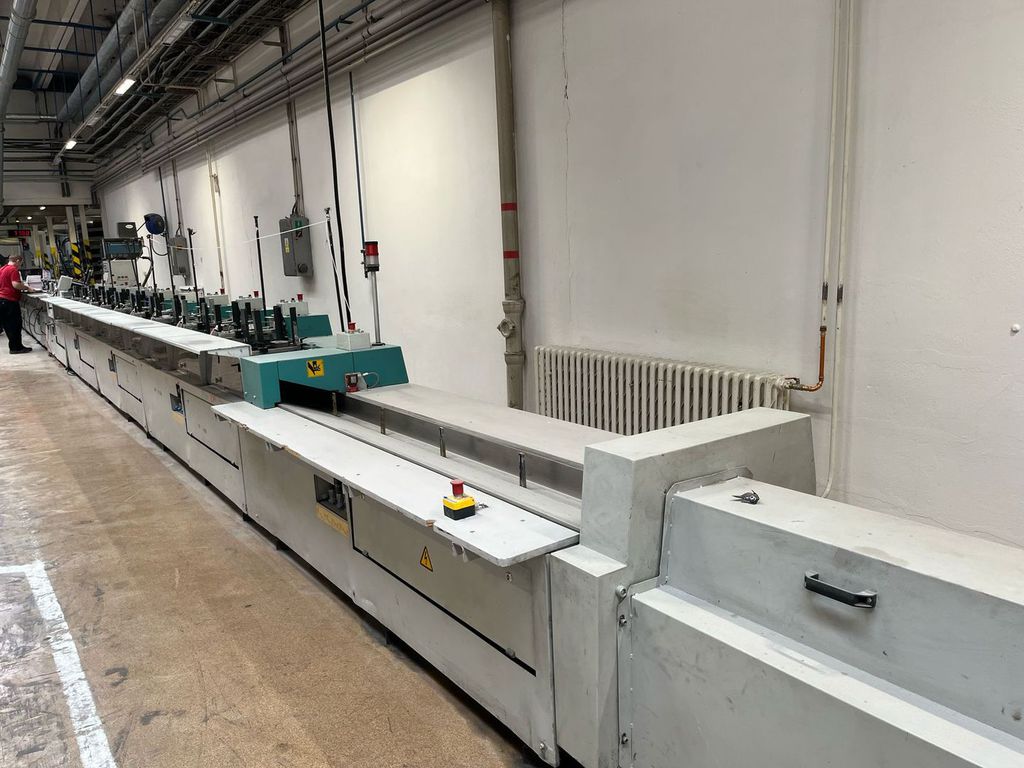

ZU816 Gatherer with 20 stations
Signature recognition control
Reject station
transfer to:

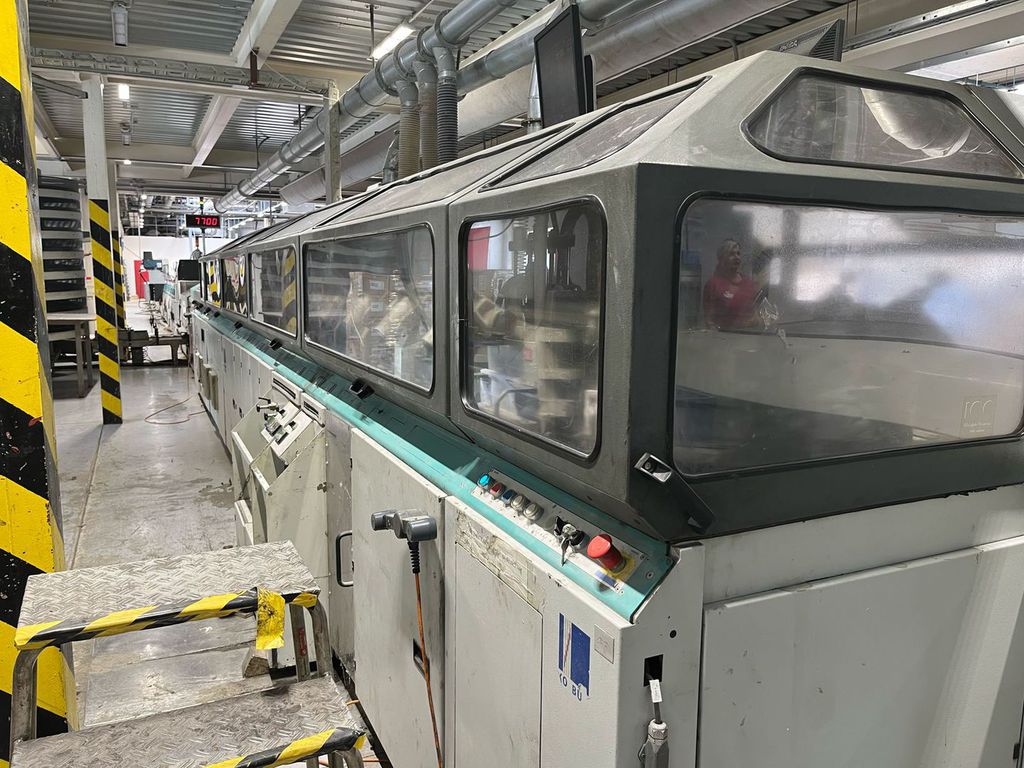

KM System Binder 2000

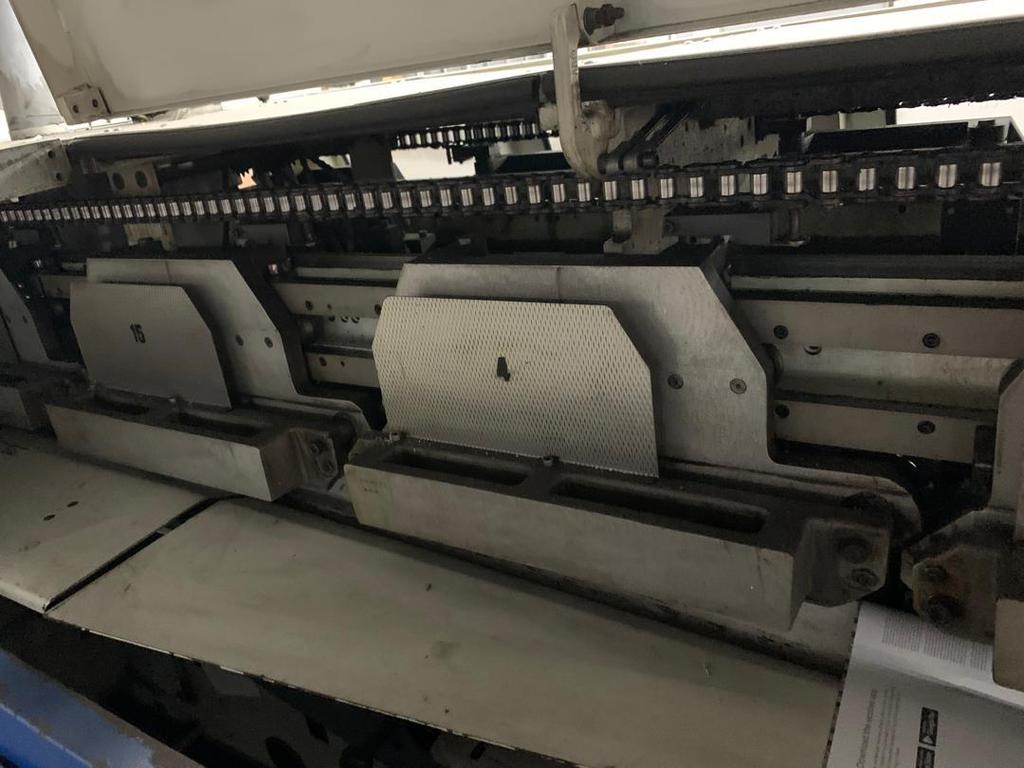

25 clamps
Spine preparation area
Hot melt side and spine gluing

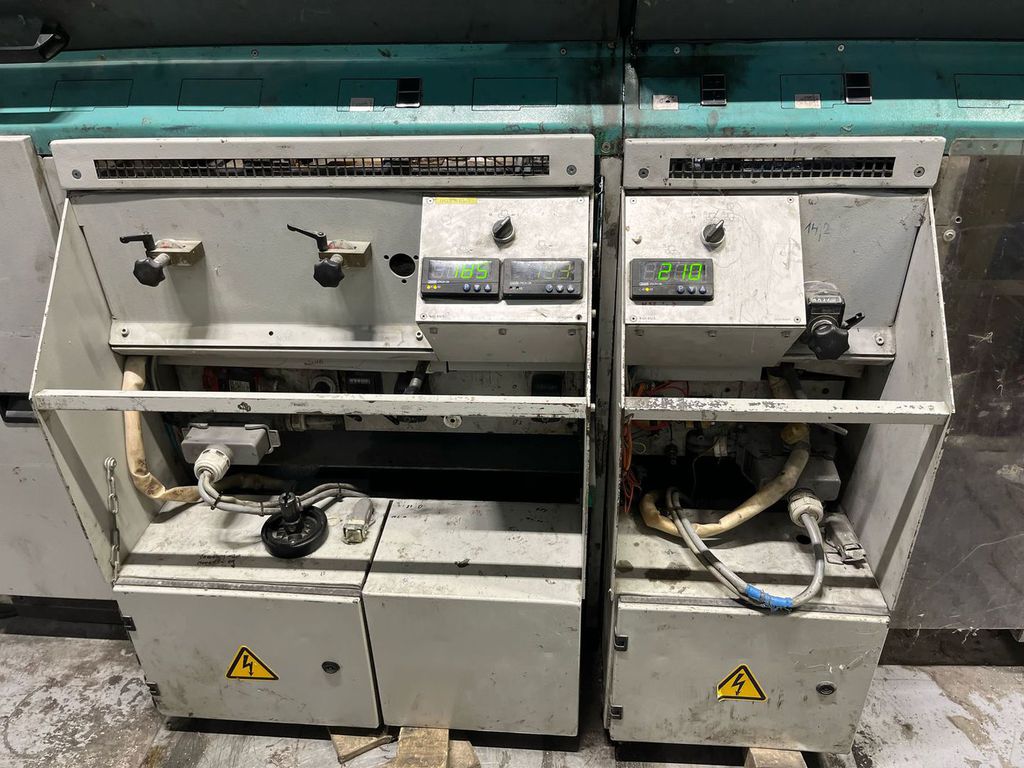

Pre Melters
Cover feeder
Nipping and pressing
lay down delivery

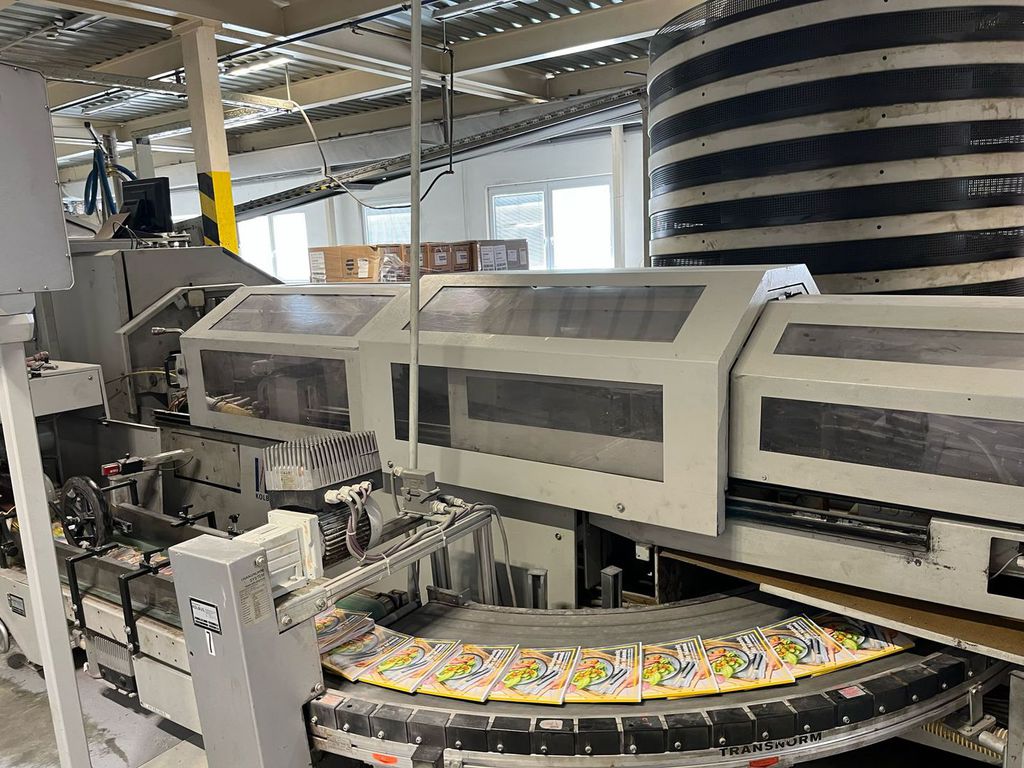

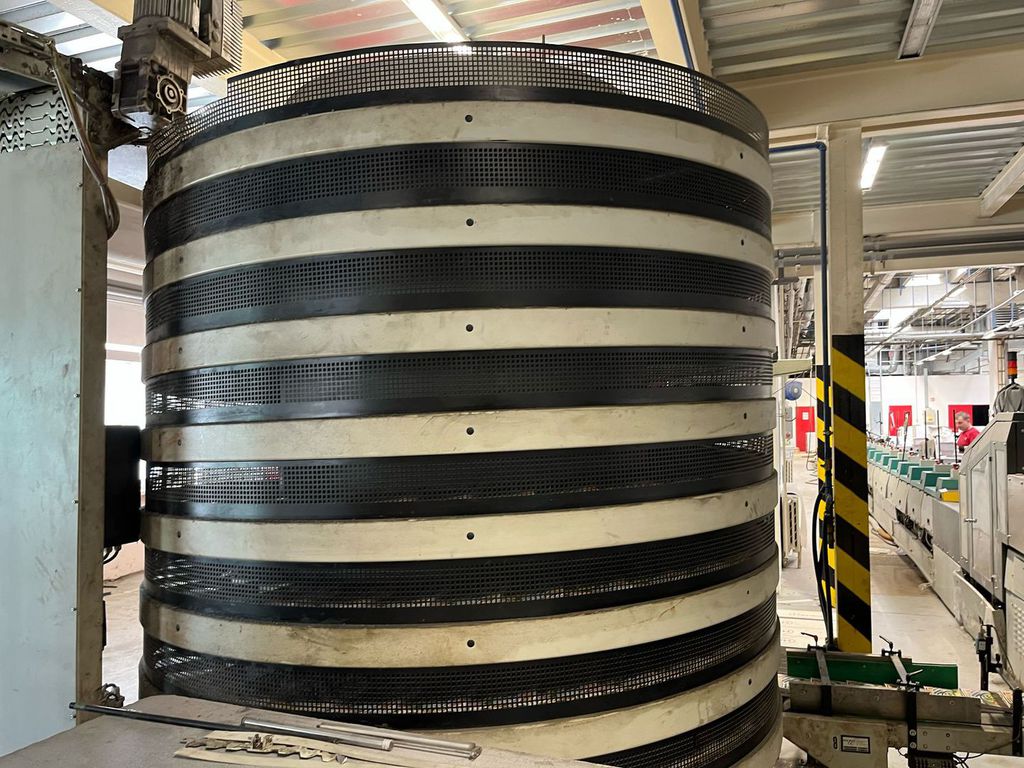

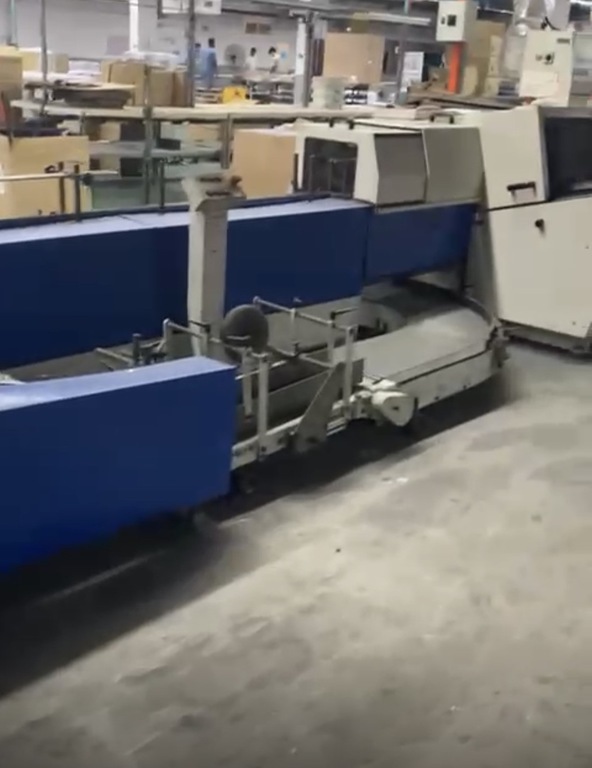

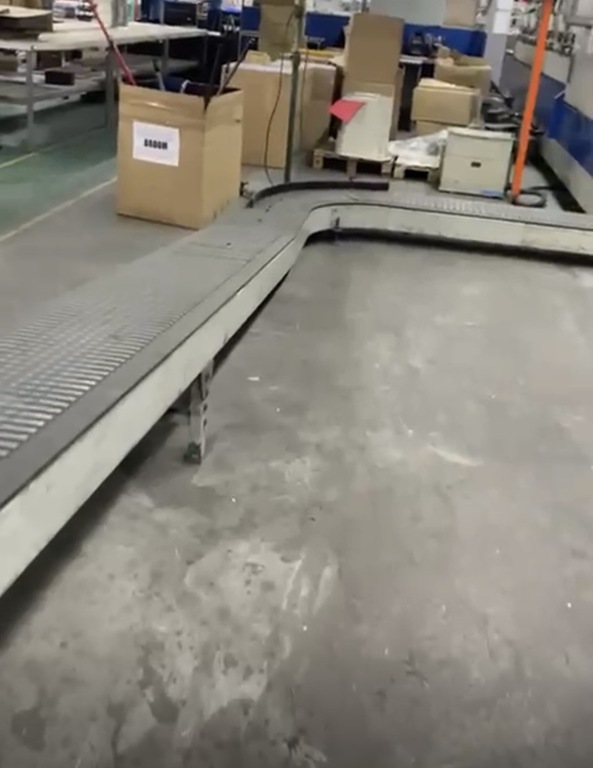

Conveyor system incl tower system
HD151P trimmer
Rima Stacker

* Easyfly shown not included

2001
2 hand feeding stations
12 gathering stations
4 automatic stream feeders OMG Sin Cronos with Preloader Olimpic
Optical sheet control
Air center
Set up element
Reject gate for incomplete products
Transfer into the binder

Kolbus KM 410.B perfect binder
Co-Pilot with touch screen
30 clamps
Main milling station
1st spine preparation station
2nd spine preparation station
3rd spine preparation station
Excluding dust extraction system, machine was connected to a centralised dust extraction system
Hotmelt spine glue unit,
Hotmelt side glue unit
Premelter for side glue unit
Gauzing station
Stream cover feeder: Non Stop
Scoring station
Pump(s)
1st nipping and pressing station
2nd nipping and pressing station
Lay down device
Belts and curve to
Tower Kolbus 25 metrs
Linear belts approx. 25 metrs to
Trimmer Zenith S age 2001
Prestaker
Cassettes preparation cut plans
2 series of blades
Stacker OMG B staker with new computer.

*** PHOTOS COMING SOON

2002

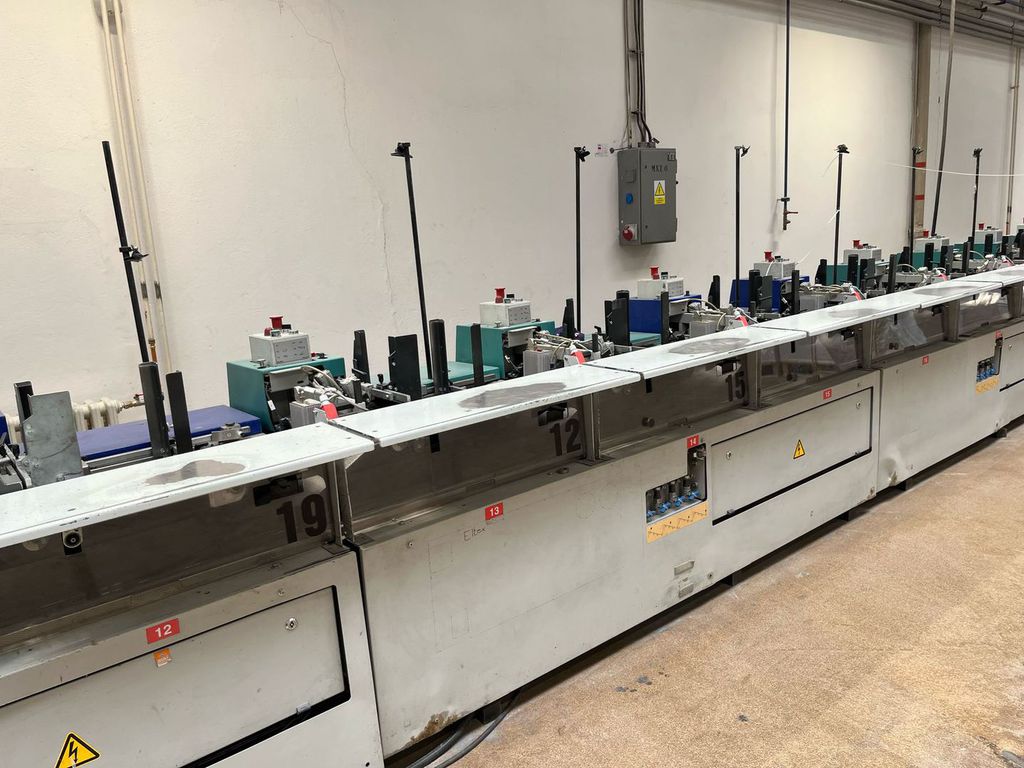

2 hand feeding stations
21 gathering stations

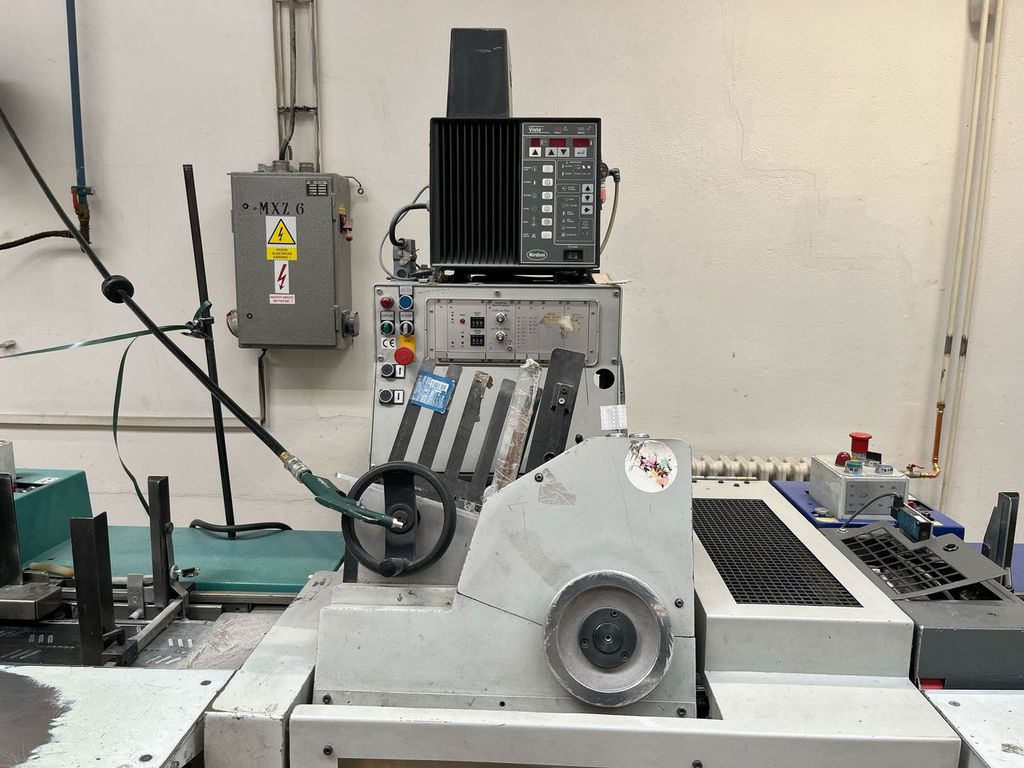

Card tipping/gluing
Optical sheet control
Air center
Set up element
Reject gate for incomplete products
Transfer into the binder

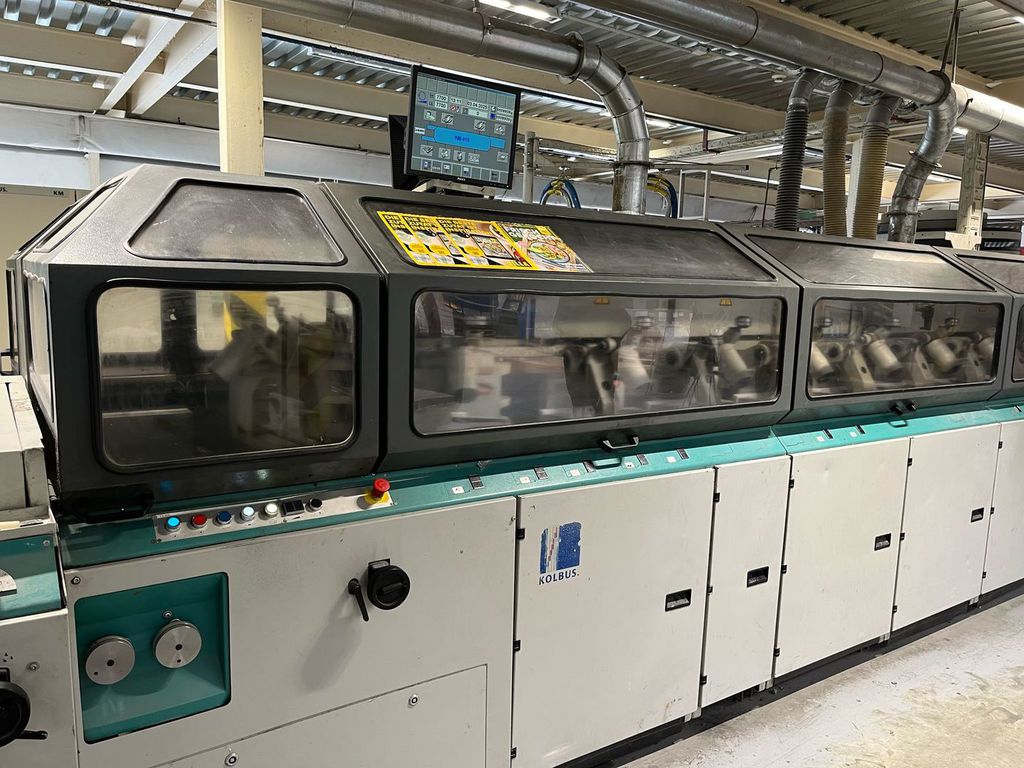

Kolbus KM 410.C perfect binder
Co-Pilot with touch screen
24 clamps
Main milling station
1st spine preparation station
2nd spine preparation station
Excluding dust extraction system, machine was connected to a centralised dust extraction system
Hotmelt spine glue unit,
Hotmelt side glue unit

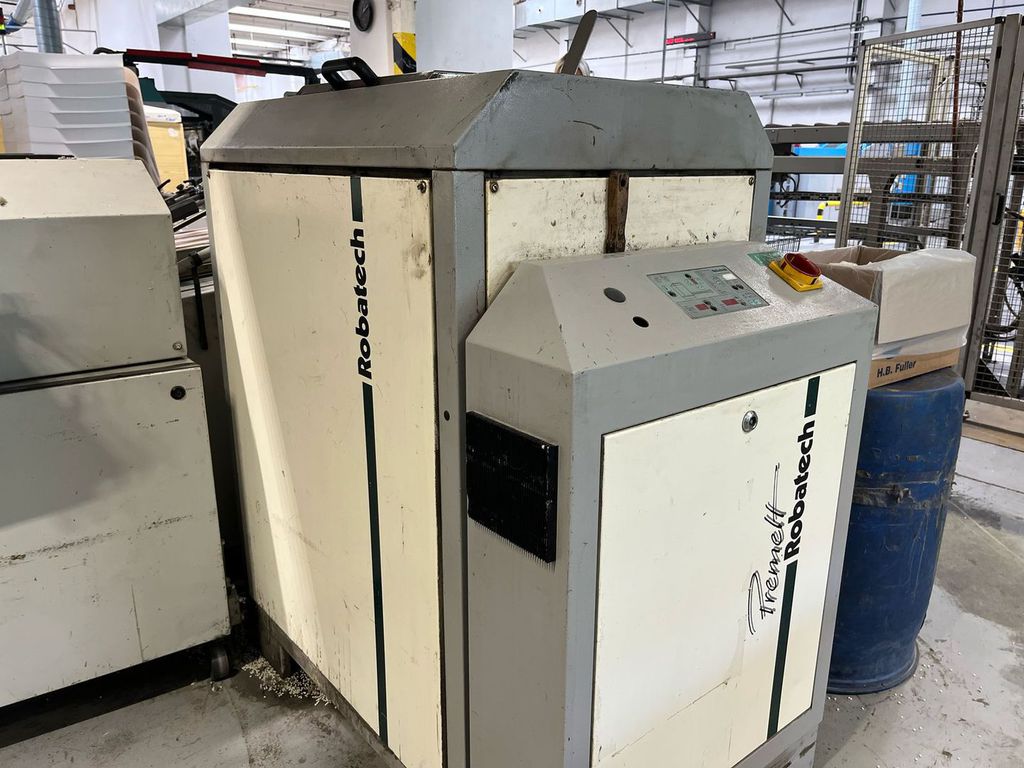

Premelter for side glue unit

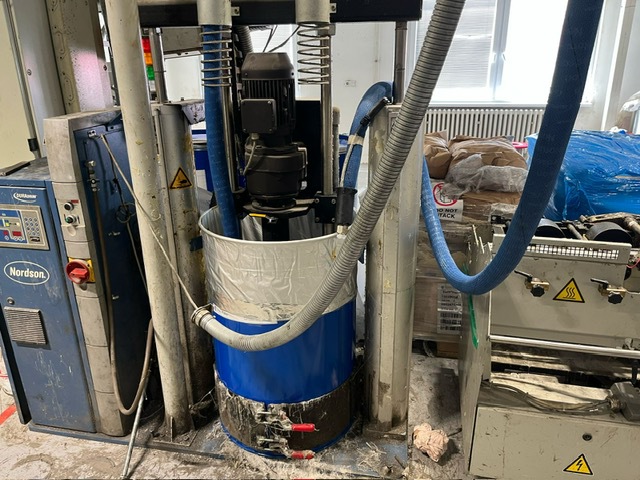

Nordson PUR Gluing unit
Stream cover feeder: Non Stop
Scoring station
Pump(s)
1st nipping and pressing station
2nd nipping and pressing station
Lay down device
Belts and curve to
Drying Tower Kolbus 25m
Drying belts approx. 25m
Pre stacking
Kolbus HD151P Trimmer
MM CB16 Stacker

2015/16
Size max: 320 x 380 mm
Size min: 105 x 105 mm
layer thickness max: 3 mm
Pile height max: 250 mm
Mechanical speed max: 9.000 cycles/hour

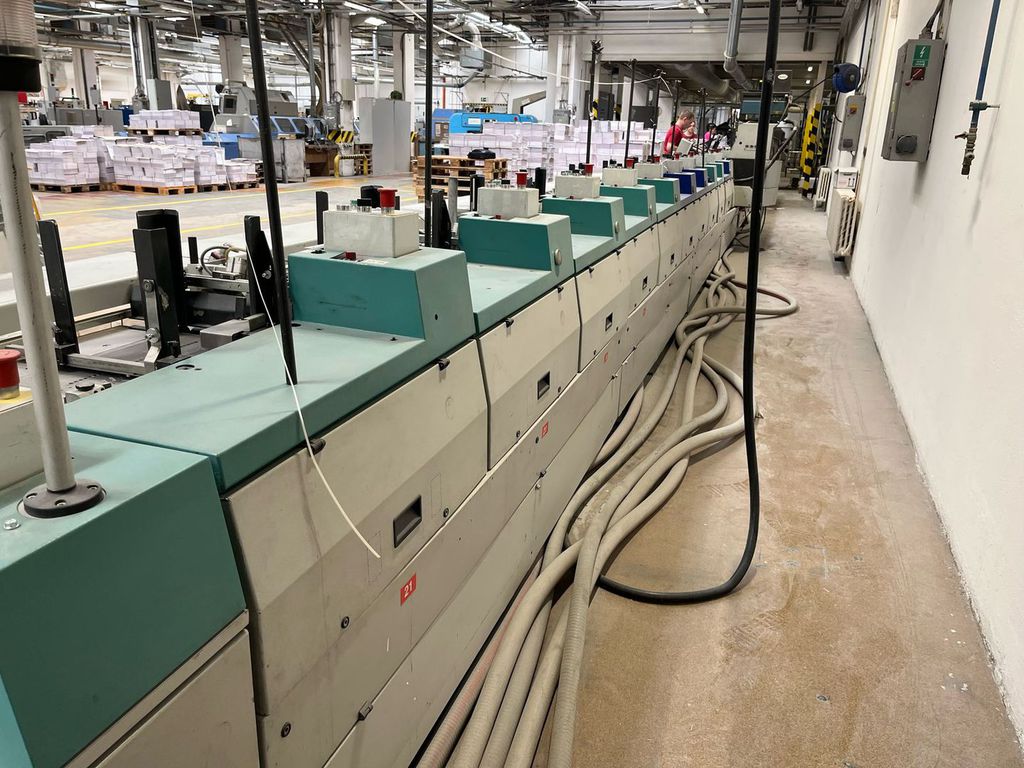

Kolbus ZU 805 Gatherer
24 x automatic feeders
1 x Hand feeding station
ATC (automatic sheet thickness control)
Reject Unit: AS 842
Transfer to:
Kolbus KM 600 Binder
Copilot
21 clamps
Milling station
Hot melt Gluing
Pre melters
Cover feeder
Scoring station
Nipping and Pressing
Lay down device
Cooling conveyors
Escape gate
FA 650 Front Cutting Unit
HD 143P 3 knife trimmer
Compensating stacker KL301

NEW PUR UNIT CAN BE OFFERED

2003

MM 3695 with 15 automatic feeding stations
manual feeding station
Reject gate, for incomplete products: 3614
Intermediate elements
Transfer into the binder

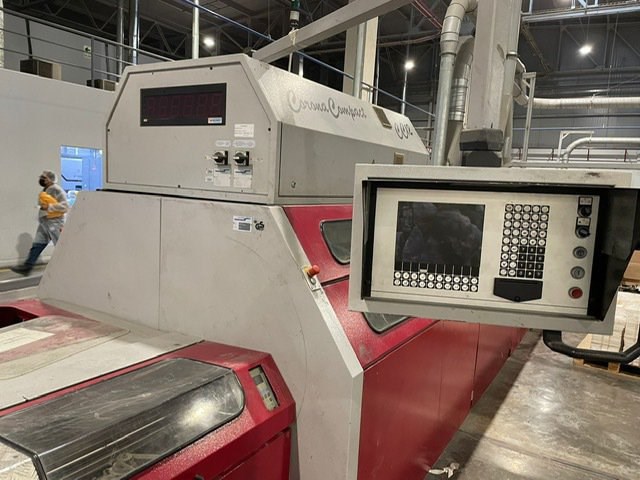

perfect binding line Corona CC12-22 with 22 clamps
3642 Book Block feeder
Hotmelt spine and side gluing
Premelter 80 ICS
Premelter
2 end sheet tipping feeders for hardcover spine
Roughening station
Nipping station
Vertical cover feeder
One nipping and pressing station
Lay down device
long conveyor with cooling system
Double Production
3641 Spiral Raceway
Jogging Unit
Commander Control & Operating Station
Spine Preparation Station
Laydown Delivery
Conveyor System
MM Zenith-S 3672 three knife trimmer

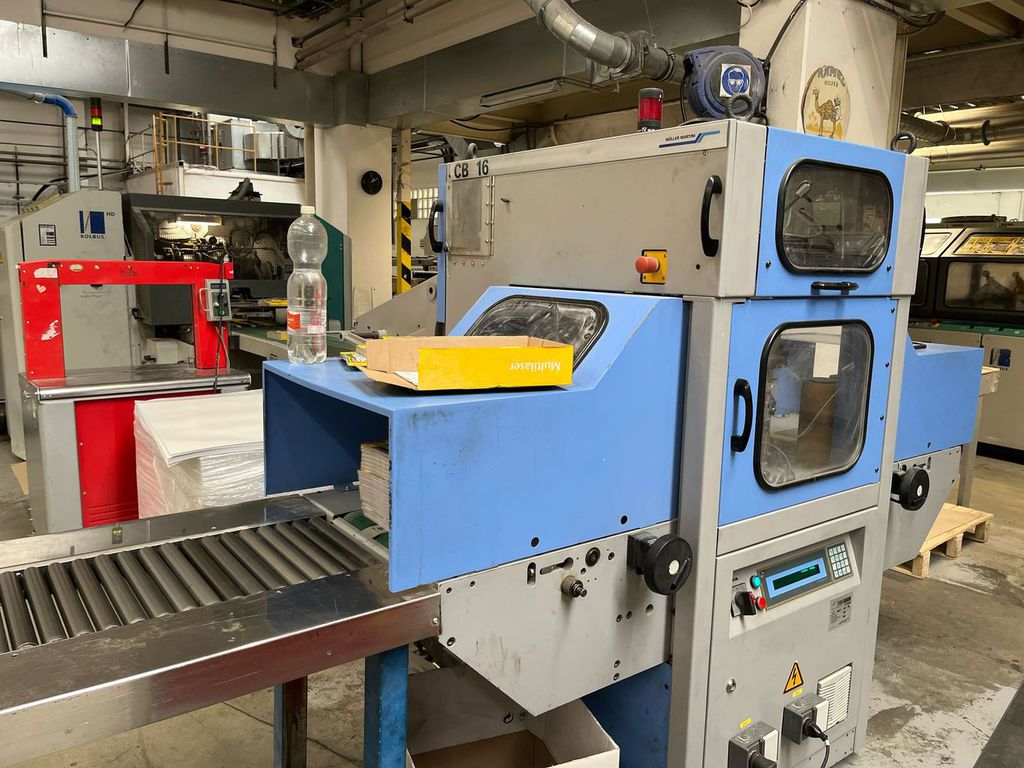

MM CB-16 stacker with counting

**now dismantled**

Muller Martini TIGRA binding line

Muller Martini Acoro A5 binding line
