Here's where you will find Newspaper Presses, Semi Commercial Presses/Coldset Presses of all Brands.

2008

546mm cut off

915mm max width

Broadsheet:

12 pages 4 colour/4 pages 1 colour

Tabloid:

24 pages 4 colour

8 pages mono

35,000 cph

Central control desk

Remote ink control

Quadtech closed loop control

Cut off control

4 x splicers

3 x 4 Hi Towers

1 x Mono

Baloon former

Bay window

1 x Combination folder

Plate bender/punch

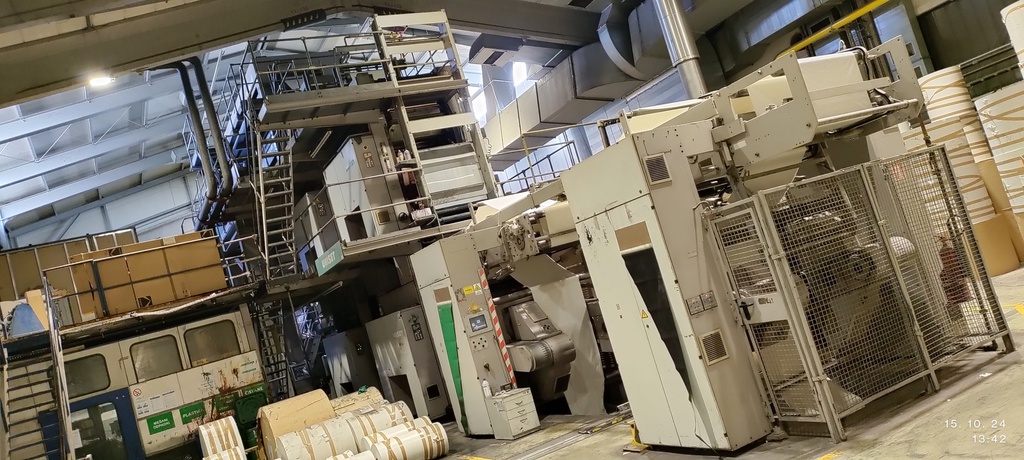

2000
630 mm cut off
(Double circumference)
985mm web width

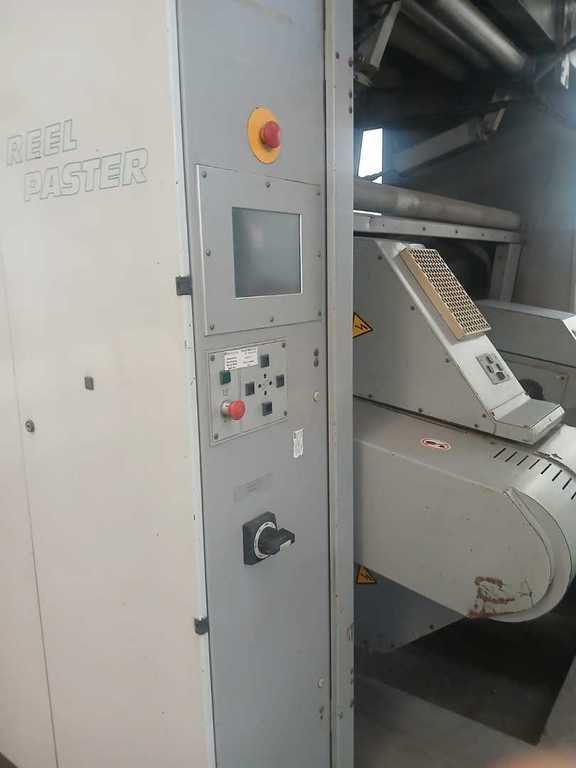

2 x Reelpaster CD13 S
E+L automatic paper centering
2 x printing towers 4/4 (double H with one motor per 2 printing couples)
Anti smear rollers
BALDWIN Dayliner Fountain solution centre
BALDWIN Printing unit temperature control
OXY-DRY automatic printing blanket washing system
2 x Megtec Dual Dry III Dryer (natural gas)
1 x exhaust oxidizer MegTec Epsylon (natural gas)
2 x chill rollers
WEKO remoistening and silicone application
2 x turning bars with E+L automatic paper centering system
2 x PLANATOL gluing system (one per folder)
1 x TOLERANS wire stitching on folder 1
2 x folder Type: KFN 80/AL 630 with third folder type:DFN 128
2 x Gammerler AA 1620 product transport belts
1 x Gammerler RS243 roto cutter for product trimming on 4 sides
1 x Gammerler RS243 roto cutter for product trimming on 3 sides
2 x IN LOG compensating stackers
4 x Technotrans ink pumps
4 x ink reservoirs with level control
Grafikontrol automatic colour register and cut off system
BALDWIN System for cooling of electrical cabinets
Plate punching and bending machine

Upgrades done recently:
Control desk server upgrade done in 2016
TPP server upgrade 2016
VPN remote acess upgrade for MAN tellesupport 2016
Full dryer cleaning, service and switch from LPG to natural gas in 2017
Folder 1 had major service done in 2017 that included installation of new cutting/folding cylinder

Machine configuration enables single pass gluing of following products in
A4 format: 16, 24, 32, 48, 56 or 64 pages.
For A3 formats there is an option of wire stitching the products with following
pages: 8, 12, 16, 24 or 32 page

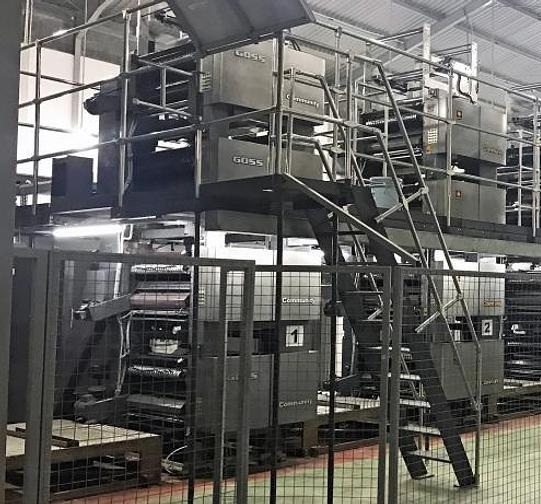

2002 / 2003

546 mm cut off x 2

840 mm width

35,000 cylinder rev/hour

70,000 copies/hour

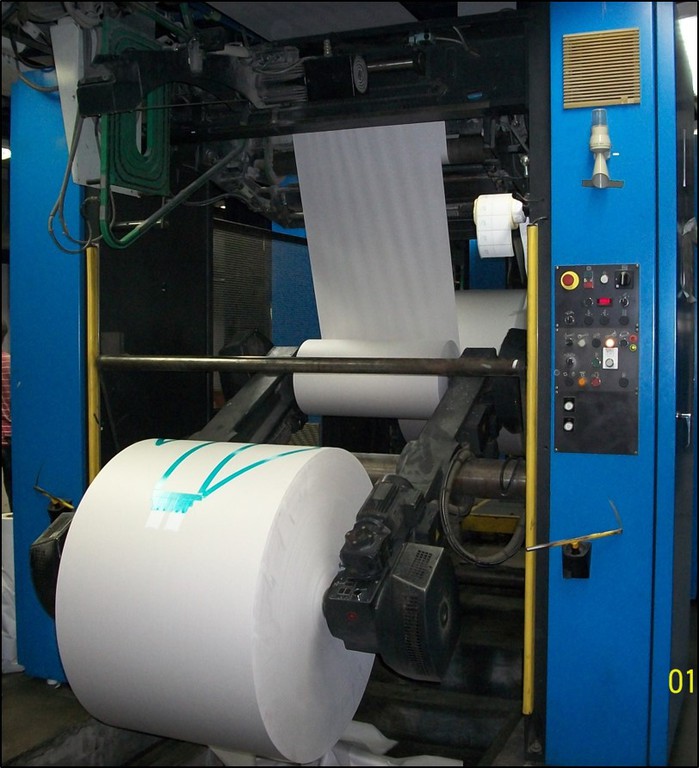

8 Megtec DLP Splicers

5 x 4 Hi Printing towers

5 x DC105 Kw drive motors

Spray bar dampening

Technotrans Gamma Water Circulators

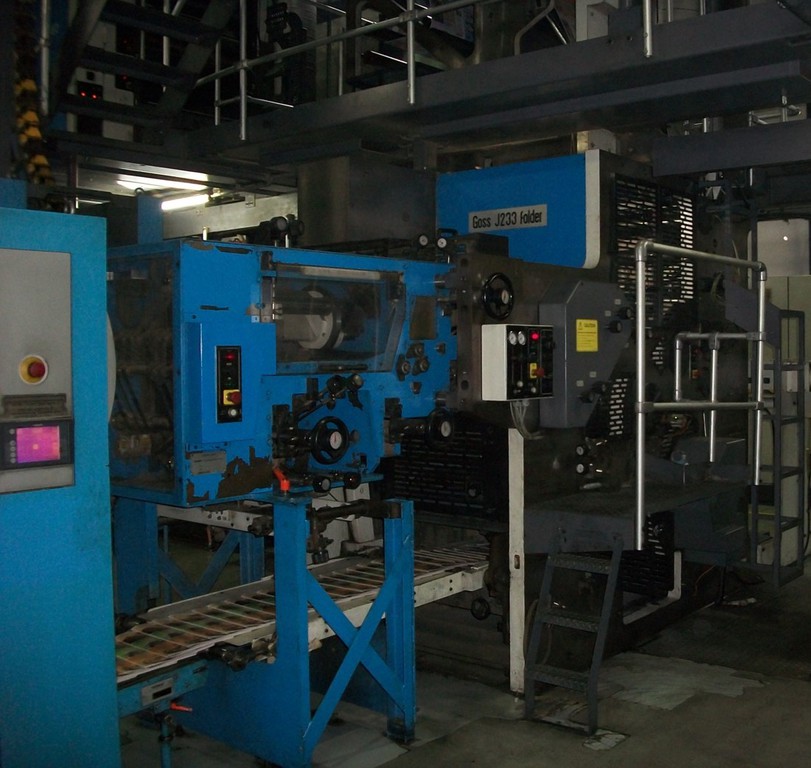

Goss 2:3:3 Folder with upper former and Quarter Fold

2 x Plate Benders

2 x Plate Punches

EPC P1 was upgraded to latest version EPC C08 by Goss in the year 2010. This gives total flexibility between Press, Quality & Drive.

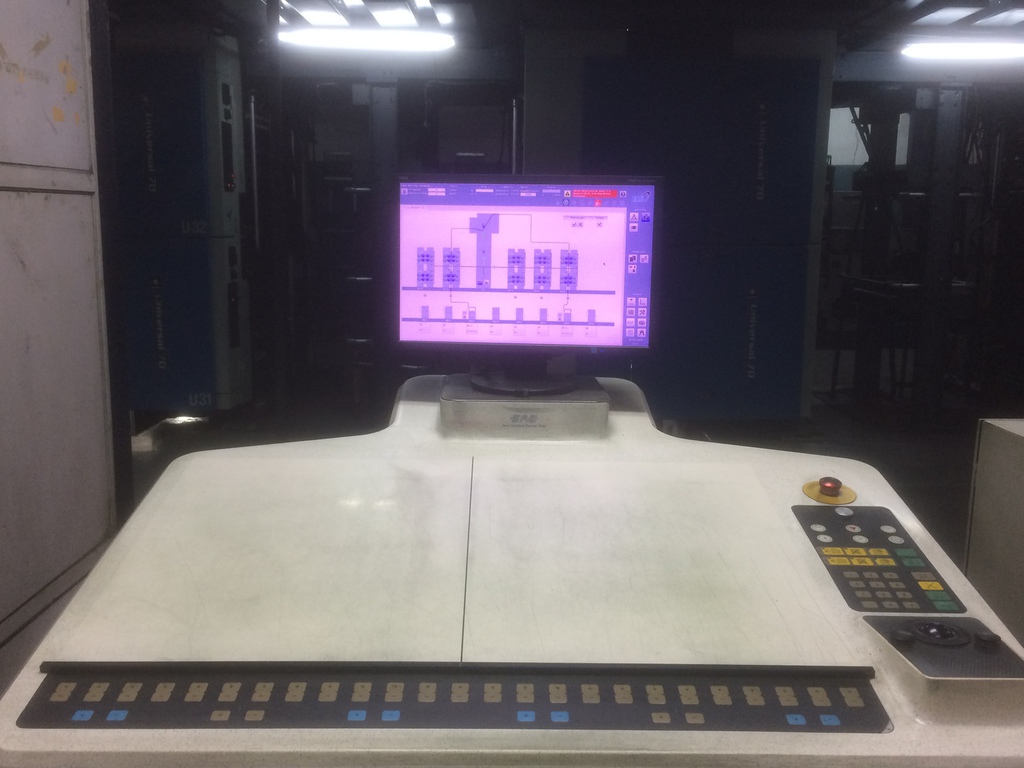

Modernization of EAE control console with operating system Windows 7 Professional including new keyboard, 24”TFT monitor, Trackball in the year 2015.

Migration of Control console software from operating system OS/2 to Windows 7 in the year 2015.

Update of EAE INFO system to version 3.2 with new INFO PC ( Simatic box PC627C) in the year 2015.

Update of Print PP system from version 2.8 to version 5.4 and set up on new print server hardware with operating system Windows server 2008 and workstation hardware with operating system Windows 7.

Huge Spare parts inventory available by negotiation – apx Euro 125,000 cost

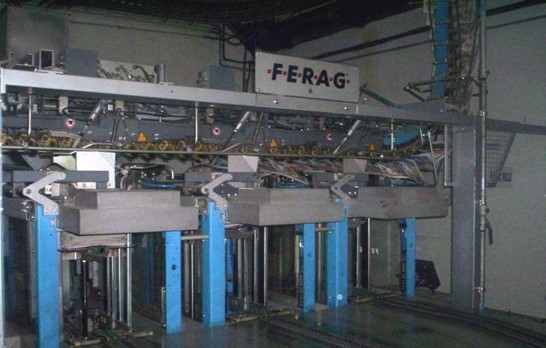

Ferag Post Post also available by negotiation

2004

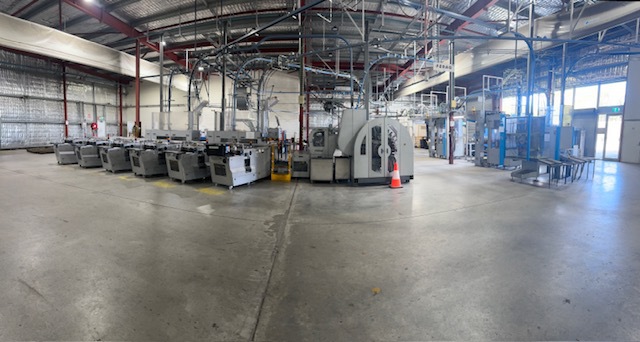

Track/Inserters/Stackers/Wrappers/strappers/

Contact for full details.
